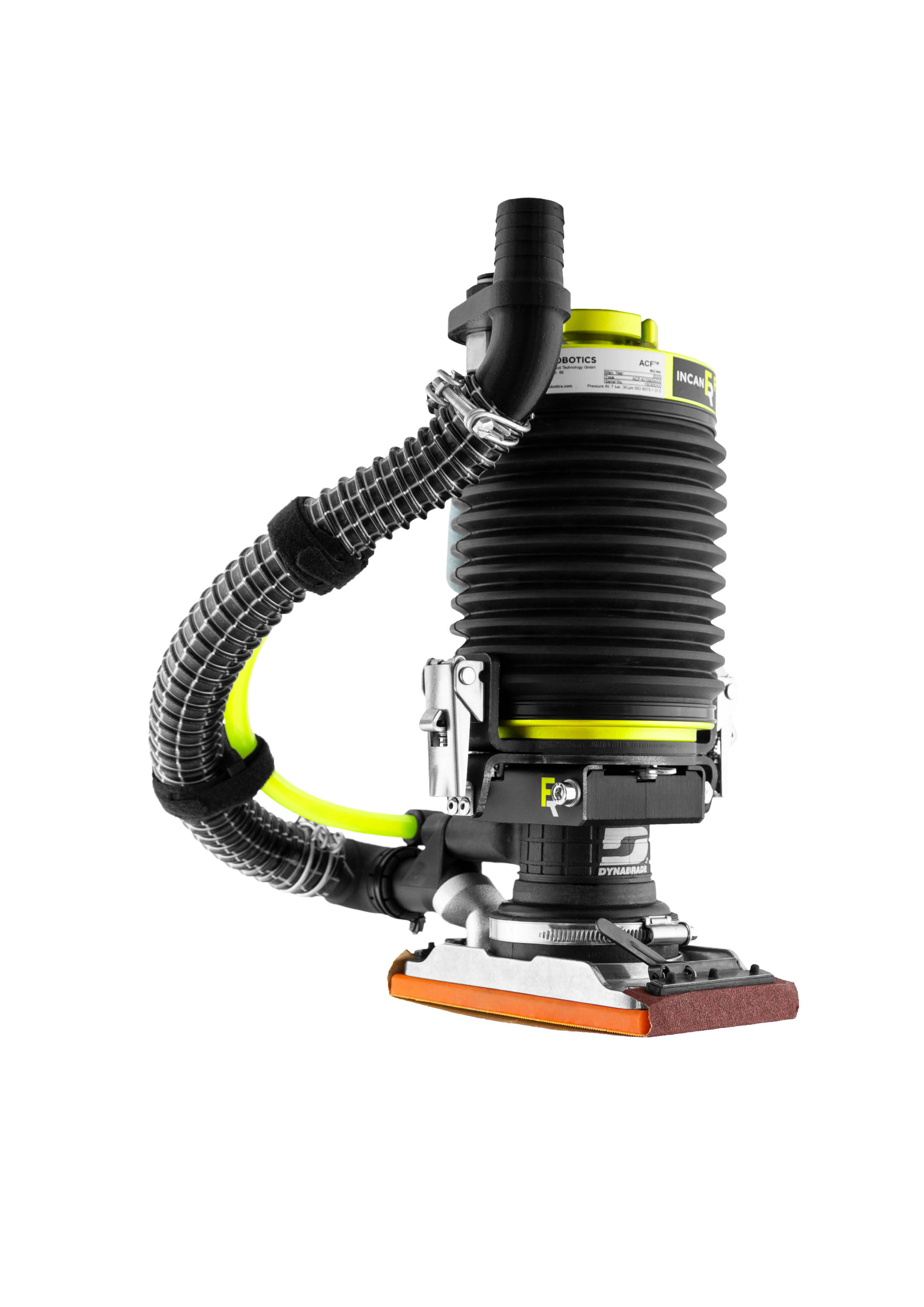

Kit includes: FerRobotics ACF-K + Dynabrade Tool Ref. 57814B

Item ref. : ACFK57814B
  • FerRobotics Active Contact Flange (ACF) - Max Force (pull/push) 100 N, Stroke 35 mm
  • Tool Ref. 57814B: Dynabug Orbital Sander 3-2/3“ (93 mm) W x 7“ (178 mm) L, 0.28 hp (209 W), 10,000 RPM, 3/32" (2 mm) Dia. Orbit, Robotic
  • Interactive compensation of surface tolerance up to 35 mm with guaranteed consistent contact force (No adaptation of the robot track)
  • Integrated gravitation compensation
  • Passive security and high-speed control
  • Flexible automation kit: user-friendly and easy to change tools
Orbit
  • 3/32'' (2.5 mm)
Vacuum Type
  • Vacuum Ready
Pad Size
  • 3-2/3'' x 7'' (93 mm x 178 mm)
