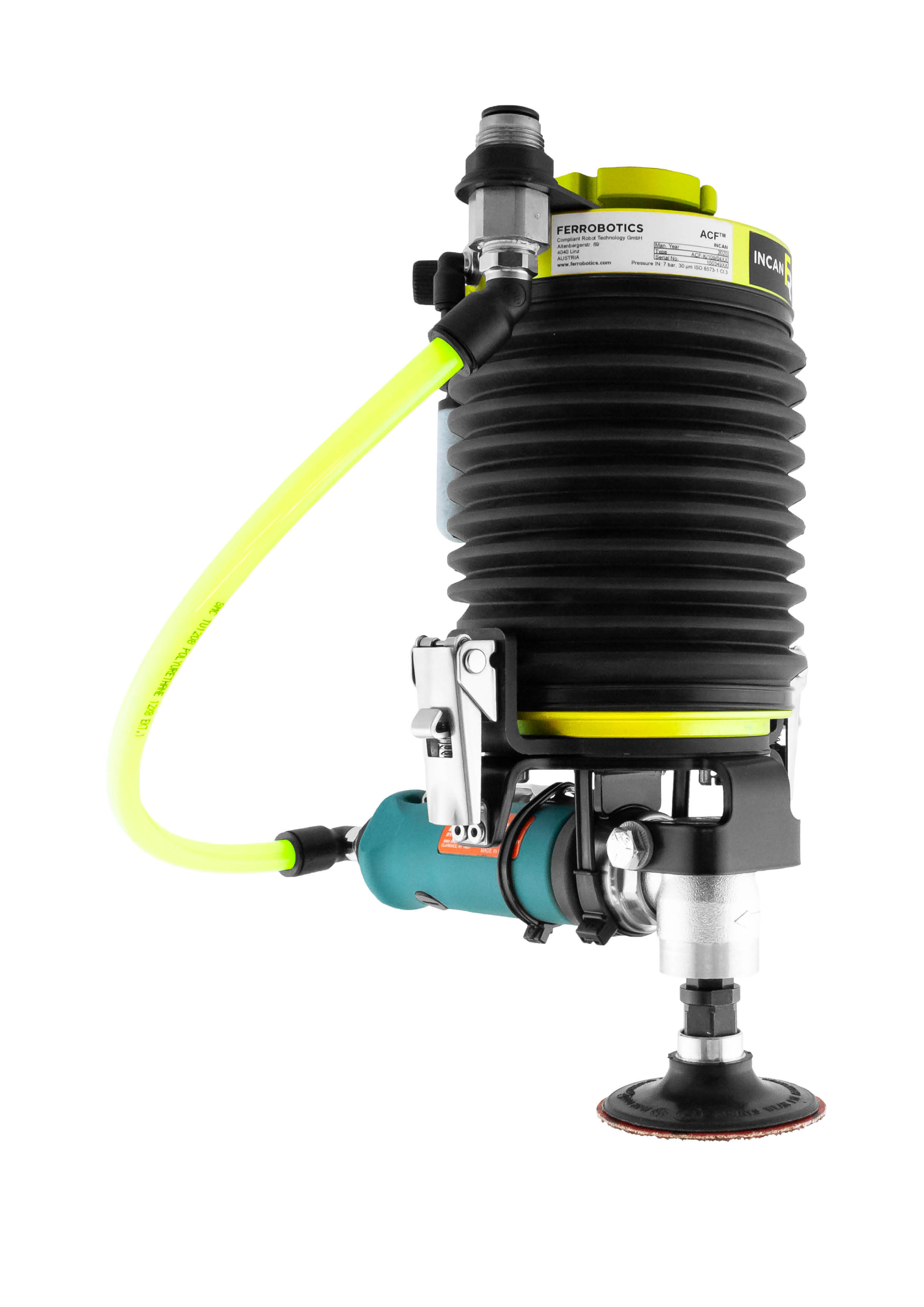

Kit includes: FerRobotics ACF-K + Dynabrade Tool Ref. 54771

Item ref. : ACFK54771
  • FerRobotics Active Contact Flange (ACF) - Max Force (pull/push) 100 N, Stroke 35 mm
  • Tool Ref. 54771: Right Angle Type 27 Depressed Center Wheel Grinder 4“ (100 mm) Dia., 0.7 hp (515 W), 12,000 RPM, 3/8“ - 24 Spindle Thread
  • Interactive compensation of surface tolerance up to 35 mm with guaranteed consistent contact force (No adaptation of the robot track)
  • Integrated gravitation compensation
  • Passive security and high-speed control
  • Flexible automation kit: user-friendly and easy to change tools
RPM
  • 12000
Hp
  • .7 (522 W)
Disc Diameter
  • 4'' (100 mm)
